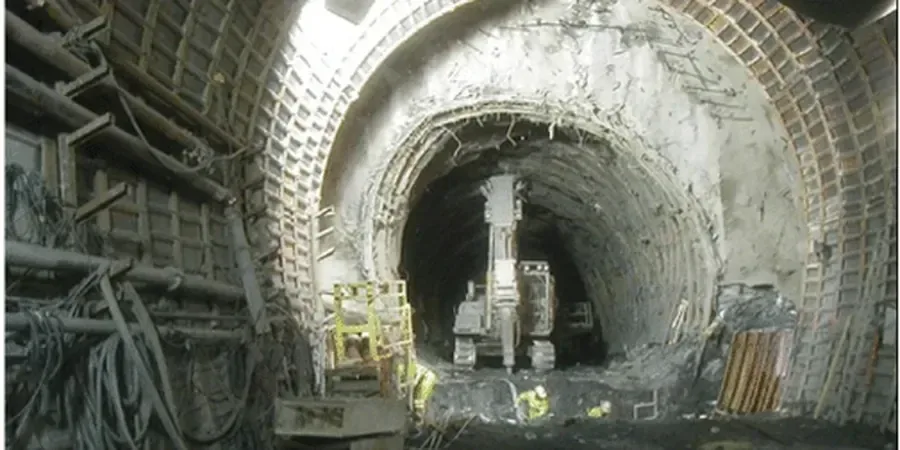

A transit tunnel through Oakland’s alluvial plain faces a common challenge: soft clays and loose sands that shift under load. We’ve worked on projects near Lake Merritt where the water table sits just a few feet below grade. Our team runs standard penetration tests and undisturbed sampling to map soil layers. Before any alignment is finalized, we perform cone penetration testing to capture continuous stratigraphy. This data feeds into our tunnel stability models and ground support recommendations.
Bay muds and loose sands beneath Oakland require careful evaluation of settlement and liquefaction potential before any tunnel alignment is approved.
Approach and scope
- Borehole drilling with SPT per ASTM D1586 to measure penetration resistance in soft layers
- Undisturbed tube sampling for triaxial and consolidation testing
- MASW surveys to evaluate shear wave velocity and site class per ASCE 7
Site-specific factors
The Bay Area’s Mediterranean climate brings dry summers and wet winters, which saturate Oakland’s shallow aquifers. During tunnel excavation, a sudden rise in pore pressure can destabilize the face. We analyze this using effective stress principles and consolidation theory. Seismic risk is another layer — soft soils amplify ground motion and can cause liquefaction. Our reports include specific mitigation measures such as Improvement or deep drainage systems to keep the tunnel safe.
Relevant standards
ASTM D1586-18 (Standard Test Method for SPT), ASTM D2850-15 (Unconsolidated-Undrained Triaxial Test), ASCE 7-22 (Minimum Design Loads, Site Class Determination), FHWA-NHI-10-034 (Technical Manual for Design and Construction of Road Tunnels)
Related technical services
Subsurface Investigation and Logging
Drilling and sampling programs tailored to soft soil profiles. Includes SPT, undisturbed tube sampling, and detailed borehole logs with soil classification per ASTM D2487.
Liquefaction and Settlement Analysis
Evaluation of cyclic resistance ratio (CRR) and post-liquefaction settlement using NCEER procedures. We also assess consolidation settlement under tunnel load using oedometer test results.
Typical parameters
FAQ
Why is geotechnical analysis for soft soil tunnels in Oakland different from other cities?
Oakland sits on bay muds and alluvial deposits with high plasticity and low strength. The high water table and proximity to active faults like the Hayward Fault make seismic behavior a primary concern. Standard analysis for stiff soils doesn't apply here.
What are the typical costs for a soft soil tunnel geotechnical study in Oakland?
Depending on the project scale and number of borings, costs typically range from US$3,590 to US$16,000. This includes field drilling, laboratory testing, and a comprehensive report with settlement and liquefaction analysis.
How long does a complete geotechnical analysis take for a tunnel project?
A standard investigation takes four to six weeks. This includes two weeks of field work, two weeks of lab testing, and one to two weeks for analysis and reporting. Larger projects with multiple alignments may take longer.
