We see too many projects in Oakland where the factor of safety gets treated as a simple checkbox. The Bay Area's mix of young bay mud, old alluvial fans, and Franciscan Complex bedrock means a generic FS value from a textbook can be dangerously wrong. Every FS calculation we run starts with site-specific soil parameters — shear strength, unit weight, groundwater conditions — measured in our lab under ASTM D2850 and D3080. For shallow foundations on the flatlands near the estuary, we often pair this with a study of shallow foundations to verify bearing capacity against the design loads. On the steeper hillsides above 13th Street, the same approach must account for potential translational slides. We do not apply a blanket 1.5 or 2.0; we derive the required factor from the consequence class of the structure per ASCE 7-22 and IBC Chapter 18.
A 10% rise in groundwater can reduce the factor of safety by 0.3 or more in Oakland's bay mud — that is a real margin that cannot be ignored.
Approach and scope
Site-specific factors
Oakland sits on the Hayward Fault, one of the most active in the U.S., and the contrast between the alluvial flatlands and the East Bay hills means the factor of safety can change dramatically over 200 meters. In the flatlands, shallow groundwater and soft bay mud produce low FS values for bearing capacity — we have seen cases where a 1.5 static FS dropped below 1.0 under M7 earthquake shaking. On the hills, the risk shifts to deep-seated landslides along bedding planes in the Franciscan melange. Ignoring the site-specific seismic coefficient or using a generic 1.5 for both scenarios leads to under-designed foundations or over-designed slopes. We run the numbers with real data. That is the only safe approach in this region.
Relevant standards
ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings), IBC 2021 (International Building Code, Chapter 18: Soils and Foundations), ASTM D2850-15 (Unconsolidated-Undrained Triaxial Compression Test), ASTM D3080-11 (Direct Shear Test of Soils Under Consolidated Drained Conditions)
Related technical services

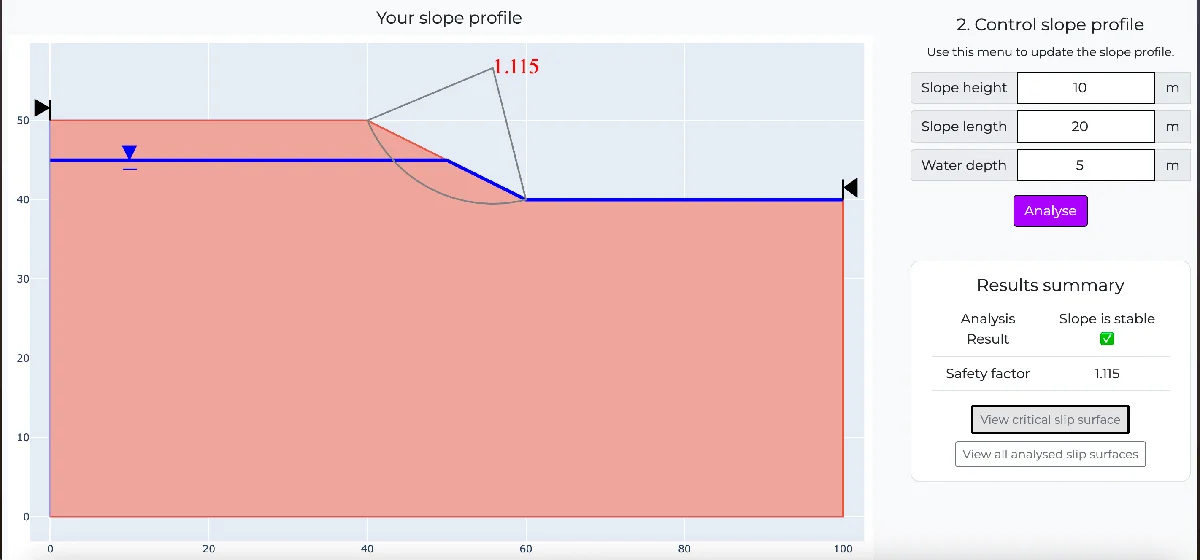

Slope Stability FS Analysis
Limit equilibrium analysis using Bishop, Spencer, or Janbu methods for natural slopes, cut slopes, and fill embankments. We incorporate seismic pseudo-static coefficients per ASCE 7 and groundwater monitoring data. Output includes critical slip surface location, FS value, and sensitivity to water level changes.
Bearing Capacity FS for Foundations
Terzaghi, Meyerhof, or Vesic methods applied to shallow and deep foundations. We use site-specific shear strength from triaxial or direct shear tests, and we adjust for eccentricity, inclination, and seismic loading. The result is a recommended allowable bearing capacity with a documented FS.
Retaining Wall FS (Overturning & Sliding)
We calculate the factor of safety for retaining walls — both gravity and cantilever — against overturning, sliding, and bearing failure. The analysis includes active/passive earth pressures (Rankine or Coulomb), surcharge loads, and seismic increments per Mononobe-Okabe. A clear report with tables and recommended wall geometry is provided.
Typical parameters
FAQ
What is the typical factor of safety used for slope stability in Oakland?
For static conditions, we target a minimum FS of 1.5 for permanent slopes and 1.3 for temporary excavations. Under seismic loading (pseudo-static), the acceptable FS drops to 1.1 for structures of normal importance and 1.2 for essential facilities per ASCE 7. These values are not arbitrary — they come from the consequence class of the structure and the uncertainty in soil parameters.
How much does a factor of safety calculation cost in Oakland?
The cost typically ranges between US$600 and US$1,710 depending on the complexity of the site, the number of failure modes analyzed, and whether field testing is required. A simple bearing capacity check for a single footing may be at the lower end, while a full slope stability analysis with seismic loading and sensitivity runs is at the upper end.
What soil parameters do you need for the calculation?
We need cohesion (c') or undrained shear strength (Su), friction angle (phi'), total and effective unit weight, and groundwater depth. For seismic cases, we also need the site class (A through F per ASCE 7) and the peak ground acceleration (PGA) for the location. All parameters should come from lab tests on undisturbed samples from the site, not from literature.
Do you consider the Hayward Fault in the seismic FS?
Absolutely. The seismic coefficient used in pseudo-static analysis is based on the design earthquake for the site, which for most of Oakland is tied to the Hayward Fault. We use the PGA from the USGS seismic hazard map for the specific coordinates, then apply the appropriate reduction factor per ASCE 7. The result is a realistic seismic demand, not a code-minimum blanket value.
Can you run the calculation for an existing slope that already has movement?
Yes. We can back-calculate the factor of safety from observed movement using limit equilibrium and, if needed, a simple displacement analysis. The FS of a slope that has already failed is typically 1.0 or slightly below. We then design remediation measures — such as drainage, buttress fills, or soil nails — to bring the FS back to the required 1.5 for static and 1.1 for seismic conditions.
